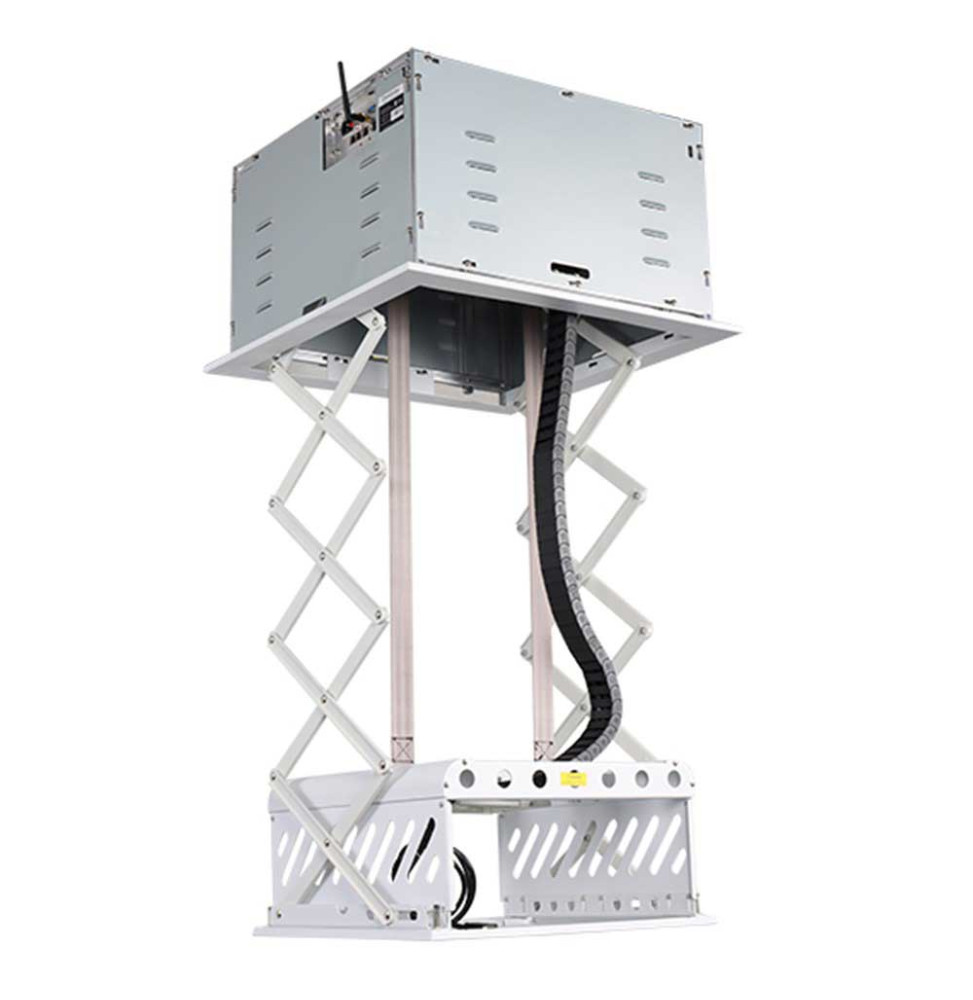

Grandview GPCKMB1000B Projector Lift

Grandview GPCKMB1000B Projector Lift

The Grandview GPCKMB1000B Projector Lift conveniently stores a projector when not in use. The ceiling offers a convenient storage space. This is the ideal solution in many conference rooms, boardrooms and auditoriums. Tucked away inside a suspended ceiling, yet easy to operate with a remote control or wall-mounted control.s.

GPCK-MB series uses a custom high-torque tubular motor. It is fully enclosed and with a dust-proof design. The lift features electronic precision positioning of desired drop height and is equipped with wireless remote control and intelligent wall control switch.

Features

• Fully Sealed Design – Designed with high strength steel structure and covered with aluminum alloy panel, the projector is isolated from ceiling environment.
• Replaceable Ceiling Decoration – The ceiling decoration board can be easily replaced to match different installations when needed.
• Cable Management – All sorts of cables are well managed inside the cable belt which ensure the smooth operation of the lift.
• Electric Positioning – With Electric Positioning, the default limits of the lift can be easily set through the remote.
• Controllable via Remote, RS-232/RS-485, and contact closure.
• Smooth running
• Low noise(≤45db)
• Precise positioning
• Durable
• The maximum load – 12Kg
• Power: 170W

Specifications

• Grandview Projector Lift, Drop – 930mm
• Fully Sealed Design – Designed with high strength steel structure and covered with aluminum alloy panel, the projector is isolated from ceiling environment.
• Replaceable Ceiling Decoration – The ceiling decoration board can be easily replaced to match different installations when needed.
• Cable Management – All sorts of cables are well managed inside the cable belt which ensure the smooth operation of the lift.
• Electric Positioning – With Electric Positioning, the default limits of the lift can be easily set through the remote.
• Controllable via Remote, RS-232/RS-485, and contact closure.
• Product Dimensions(mm)  542 × 542 × 342
• Net Weight(kg) – 28
• Max Projector Dimensions (With Wire And Lens)(mm) – 365 x 150 x 425
• Max Load(kg) – 12
• Power(w) – 170
• Noise(dB) – ≤45dB
• Ceiling Opening Dimensions(mm) – 556.6 x 556.6
